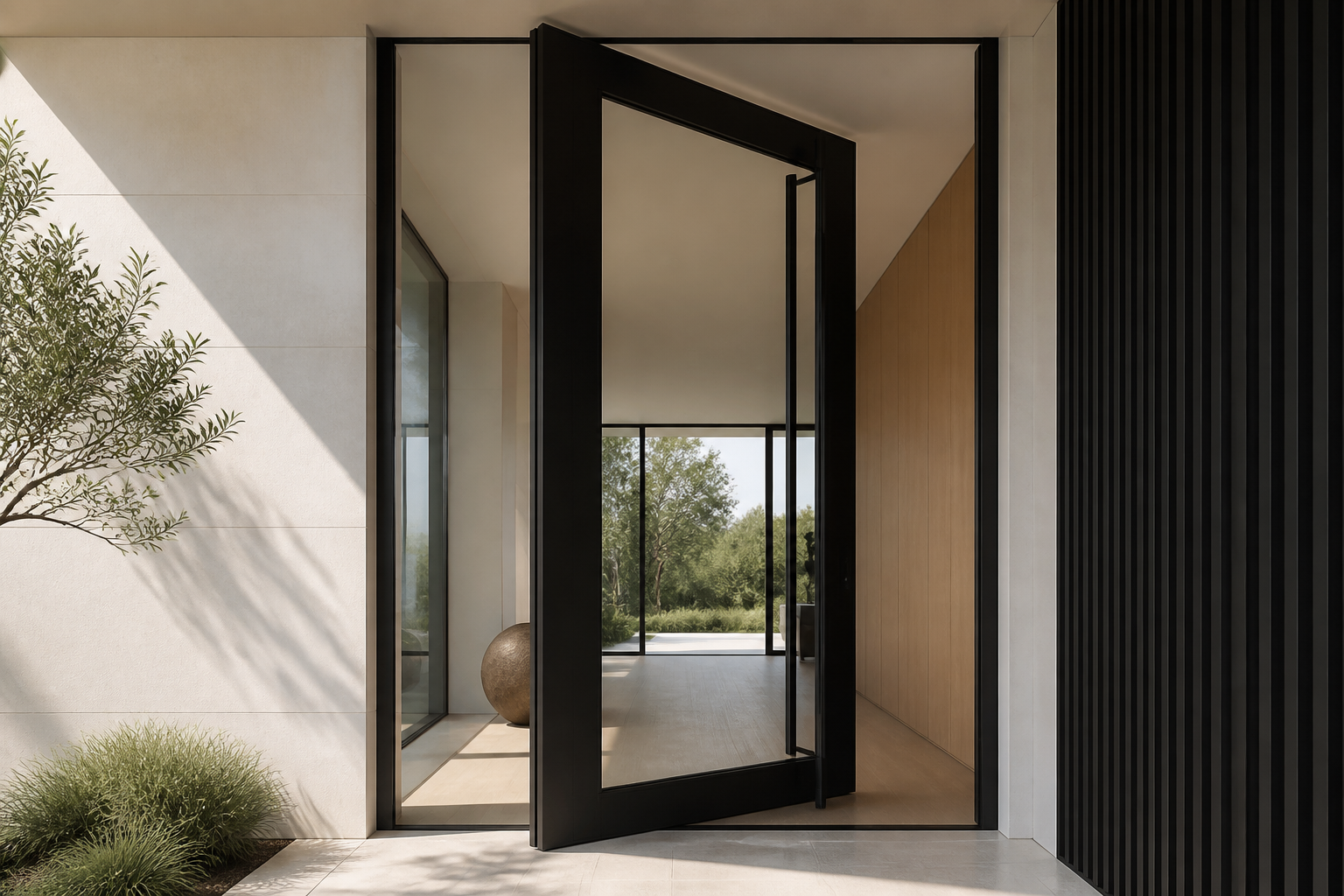

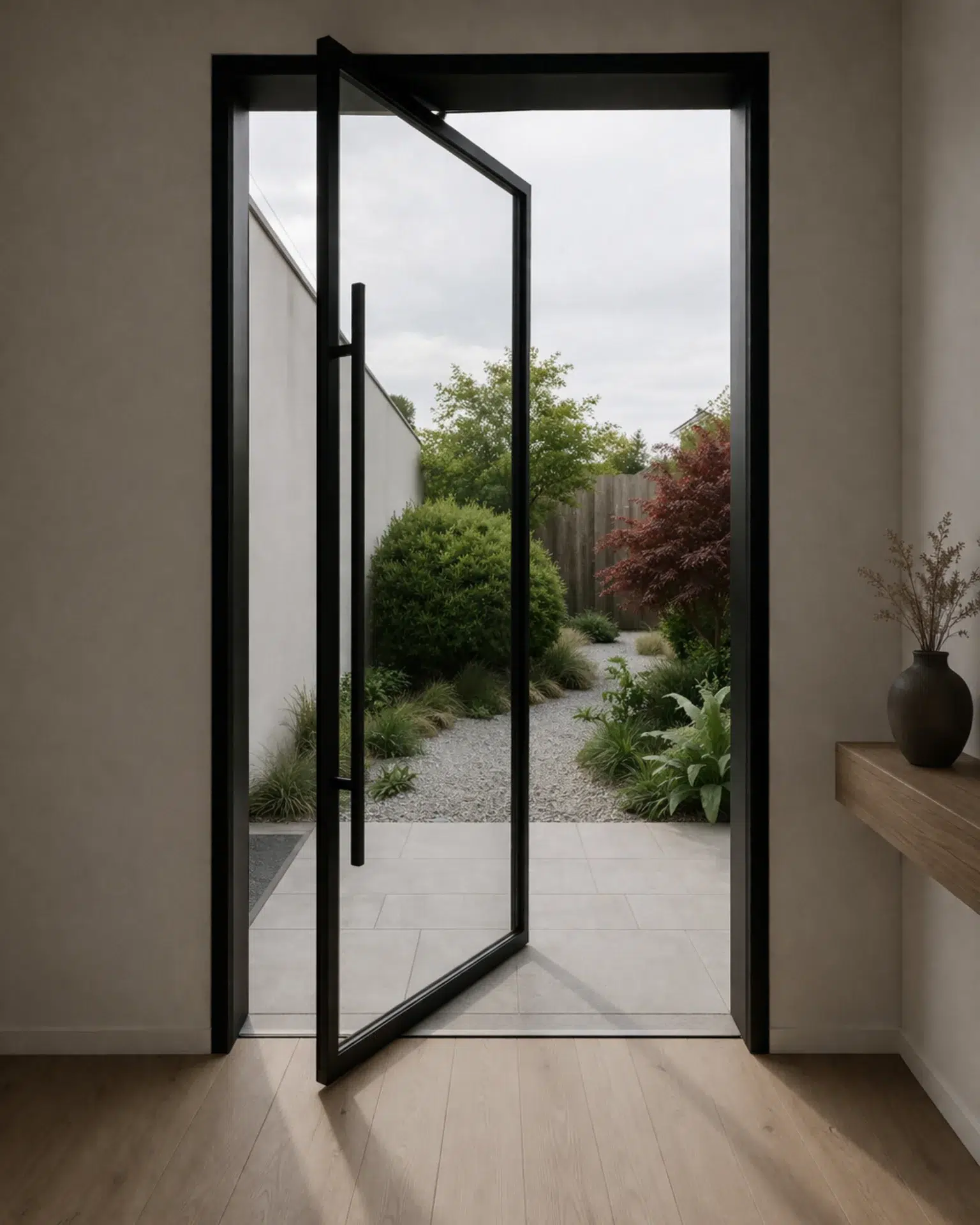

The VLX 100 Pivot Door is a heavy-duty aluminum entry system that rotates on a vertical center axis, built for homeowners and architects who want oversized glass panels that function as a true architectural statement. Unlike conventional hinged doors that swing from one side, this ViewLux system pivots from a point near the center, allowing dramatically wider openings with cleaner sightlines. At Sightline Windows & Doors Lighthouse Point, we’re an authorized ViewLux installation partner serving Lighthouse Point and the surrounding coastal communities. We’ve measured, fitted, and installed these systems in waterfront estates near Hillsboro Inlet, modern builds along the Intracoastal, and renovated ranch homes throughout Lighthouse Point. If you’re considering a pivot door for new construction or a replacement project, call us at (754) 600-8907 to schedule a free on-site consultation and exact measurement.

Call (754) 600-8907

Product Overview - VLX 100 Pivot Door

The VLX 100 was engineered for the gap between standard residential entry doors and commercial storefront systems. Most front doors max out around 42 inches wide. The VLX 100 stretches to 60 inches across and stands up to 120 inches tall, creating a single-panel entry that reads more like a glass wall than a traditional door.

The rotation happens on a concealed vertical axis set slightly off-center, typically with the pivot point hidden in the floor and head jamb. This geometry means the door can be larger and heavier than a side-hinged equivalent while operating with less swing resistance. The aluminum frame is built from extruded profiles with a 0.098-inch wall thickness, substantial enough to carry the load of a 5-foot by 10-foot glass panel without flexing or racking over time.

Buyers in Lighthouse Point gravitate toward this series for three reasons. First, the glass-to-frame ratio: the 2.56-inch profile width leaves maximum visible glass area. Second, the coastal durability of the aluminum construction and marine-grade finishes. Third, the sheer presence of the thing. A 60-inch pivot door changes how a foyer feels, how natural light enters, and how the interior connects to outdoor living spaces. We’ve installed VLX 100 systems opening onto pool decks, yacht docks, and courtyard gardens throughout Lighthouse Point homes where the entry is meant to impress and perform.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency
The VLX 100 uses a thermal break construction that separates interior and exterior aluminum surfaces with a low-conductivity barrier. This assembly is NFRC-rated for energy performance, which means the numbers are third-party verified rather than claimed. In Lighthouse Point’s cooling-dominated climate, the thermal break reduces heat transfer through the frame, lowering the load on your HVAC system. Pair it with Low-E glass and the performance improves further.

Acoustic Performance
A pivot door this large could be an acoustic liability in lesser engineering. The VLX 100 frame is designed with internal chambers and gasket interfaces that dampen sound transmission. Laminated glass adds mass to the panel, which is the single most effective way to reduce noise through any glazed opening. For homes near Federal Highway or the railroad corridor in Lighthouse Point, this matters.

Airtightness & Weather Seal
The perimeter gasket system and compression seals are tested to AAMA standards for air infiltration. A properly installed VLX 100 minimizes the uncontrolled air leakage that makes foyers drafty and drives up energy bills. The pivot hardware includes adjustable seals that maintain contact pressure as the door settles over years of use.

Waterproofing
Florida’s rain events are not gentle drizzles. The VLX 100 sill profile includes drainage channels and a sloped design that moves water to the exterior. During installation, we apply AAMA 812 low-expansion foam sealant at all perimeter joints between frame and rough opening. This creates a continuous air and water barrier, not just a gasket line. We water-test every installation before we leave the site.

Wind Resistance
The VLX 100 is wind-load rated for local climate requirements. In Lighthouse Point, that means compliance with the wind speed provisions of the Florida Building Code for Broward County. The laminated impact-resistant glass option satisfies the HVHZ (High Velocity Hurricane Zone) requirements for the area. The 0.098-inch wall thickness and reinforced corner joints keep the frame square under pressure differentials.

Security & Hardware
Pivot doors carry a reputation for being less secure than traditional hinged units. The VLX 100 counters this with multi-point locking hardware that engages at several points along the frame, not just at the handle location. The pivot mechanism itself is a hardened steel cartridge with sealed bearings, resistant to forced extraction. Tempered or laminated glass is harder to breach than standard annealed glass.

Color & Glass Options

The six finish options cover the full range of architectural directions we see in Lighthouse Point.

Premium Black is the default for contemporary and minimalist homes, especially those with black window frames already in place. It reads as intentional, not default. Pure White works for coastal traditional homes, Bermuda-style architecture, and any facade where you want the door to recede visually and let the glass dominate. Anodized Silver has that raw aluminum look that architects specify for mid-century modern renovations and industrial-influenced new builds.

Bronze and Champagne are the warmer metallics. Bronze leans traditional, pairing well with coral stone and terracotta roofs common in older Lighthouse Point neighborhoods. Champagne is subtler, a soft gold that catches the afternoon light without shouting. Teak Wood is a wood-grain finish on aluminum, giving you the warmth of timber with the maintenance freedom of metal. It’s popular for homes with existing wood accents that the owner doesn’t want to abandon.

Glass selection depends on privacy, solar control, and safety priorities. Clear is obvious: maximum light, maximum view, minimum privacy. Frosted and Obscure provide privacy gradients for bathrooms, bedrooms, or street-facing entries where you want light without exposure. Low-E is the energy choice, reflecting infrared heat while passing visible light. Tempered is safety glass, required by code in certain applications and smart anywhere a large panel could be struck. Laminated is the impact-rated option, two glass layers bonded to an interlayer. It’s the only choice if you need HVHZ compliance in Lighthouse Point.

Installation by Sightline Windows & Doors Lighthouse Point in Lighthouse Point

We install every VLX 100 to AAMA 2400/2410 standards, which is the manufacturer’s requirement for warranty coverage. Skip this, and you own the problems.

Our process starts with a pre-install inspection of the rough opening. Pivot doors are less forgiving than standard pre-hungs. The floor and header must be level and parallel within tight tolerances. The pivot point location is fixed by the door engineering, not adjusted to accommodate a crooked frame. We measure diagonals, check for plumb, and shim the subfloor if needed before the frame ever touches the opening.

We set the frame level, plumb, and square, then anchor it to the structural opening with fasteners at the locations and spacing the manufacturer specifies. The AAMA 812 low-expansion foam sealant goes in next, filling the gap between frame and rough opening to create an air and water seal that moves with the building. We don’t use fiberglass batts or backer rod alone; those methods leak.

After the door is hung and the hardware adjusted, we run a water test. We spray the exterior with a calibrated spray pattern while checking the interior for any penetration. Only then do we trim, clean, and walk the homeowner through operation and maintenance.

Lighthouse Point’s coastal environment adds considerations. The salt air is corrosive to lesser metals, which is why we specify marine-grade fasteners and confirm that the anodized or painted finish is appropriate for the exposure. The high water table and flat terrain mean proper sill pan flashing is non-negotiable; we’ve seen water find its way into homes where this step was rushed. And the Florida sun is unforgiving of installation shortcuts that leave gaps or unsupported sealant beads.

Improper installation voids the ViewLux manufacturer warranty. That isn’t fine print; it’s the first condition. Professional installation by an authorized partner protects your investment and ensures the door performs as engineered.

Frequently Asked Questions - VLX 100 Pivot Door

What is the lead time for the VLX 100 Pivot Door?
Lead time typically runs 8 to 12 weeks from final measurement and deposit, depending on glass selection and finish availability. Laminated impact glass and custom sizes can extend this slightly. Call (754) 600-8907 for current production schedules and to reserve your slot.

Does the VLX 100 qualify for energy tax credits?
The NFRC-rated thermal performance and Low-E glass options may contribute to qualifying your project for federal energy efficiency tax credits, depending on the year and your total installation scope. We provide the performance documentation your tax preparer needs. For definitive eligibility, consult your accountant with the NFRC labels we supply.

What warranty comes with the Pivot Door?
ViewLux provides a limited lifetime warranty on the aluminum frame and finish, with separate coverage periods for hardware and glass components. The warranty is valid only when installed by an authorized partner like Sightline Windows & Doors Lighthouse Point per AAMA standards. We register every installation with the manufacturer on your behalf.

Can I customize the size?
The VLX 100 accommodates openings up to 60 inches wide by 120 inches tall as a single panel. Within that maximum, we can configure to your exact rough opening dimensions. Oversized applications beyond these limits require a different ViewLux system. We’ll measure your opening and confirm the right product match at your free consultation.

How do I maintain aluminum frames in Lighthouse Point’s coastal climate?
Rinse the frame and glass with fresh water quarterly to remove salt accumulation, especially if you’re within a mile of the Intracoastal or ocean. Wash with mild soap and water annually. Avoid abrasive cleaners or solvents on the finish. Lubricate the pivot mechanism with a silicone-based product every two years, or annually if you use the door heavily. The finish is warrantied not to chalk, fade, or peel under normal exposure.

Get a Quote - VLX 100 Pivot Door in Lighthouse Point

Ready to see how a VLX 100 Pivot Door would work in your Lighthouse Point home? We’ll bring the finish samples, measure your opening precisely, and give you a written line-item quote with no pressure to decide on the spot. Every project starts with a free on-site consultation. Call (754) 600-8907 or reach out through our website to schedule yours. We’re local, we’re authorized, and we stand behind every door we install.
